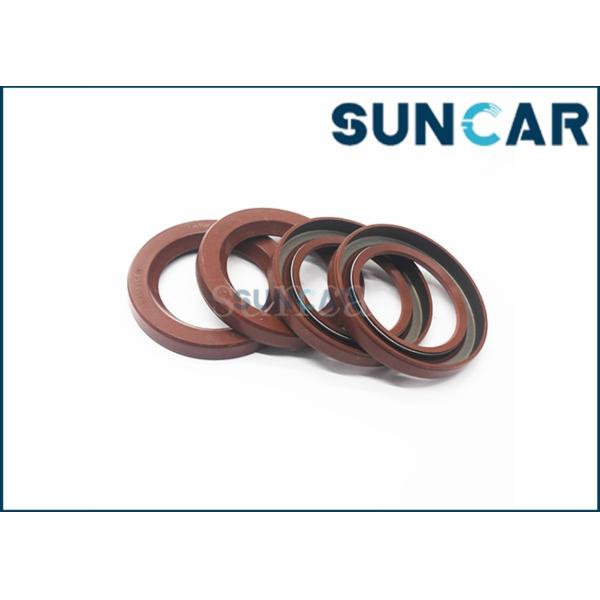

BF3466E Seal Oil FKM Quality For Komatsu Dump Truck AFP49 HD1500
| Products Name | BF3466E |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Type | Komatsu Excavator Replacement Parts |
| Model Number | Komatsu Dump Truck AFP49 HD1500 |
| Payment Terms | Western Union, Paypal, TT, Transfer |
| Supply Ability | 5000 Piece/Pieces per Month |
| MOQ | 1 SET(negotiation) |
| Feature | Abrasion Resistant, Oil Resistance, High Chemical Resistance |
| Brand Name | Suncar/ OEM |
| CertifiC.A.Tion | ISO9001:2000 |
| Shipping Mode | By air, by sea ,by express (DHL, Fedex, UPS ,TNT etc.) |
| Size | Standard Size |

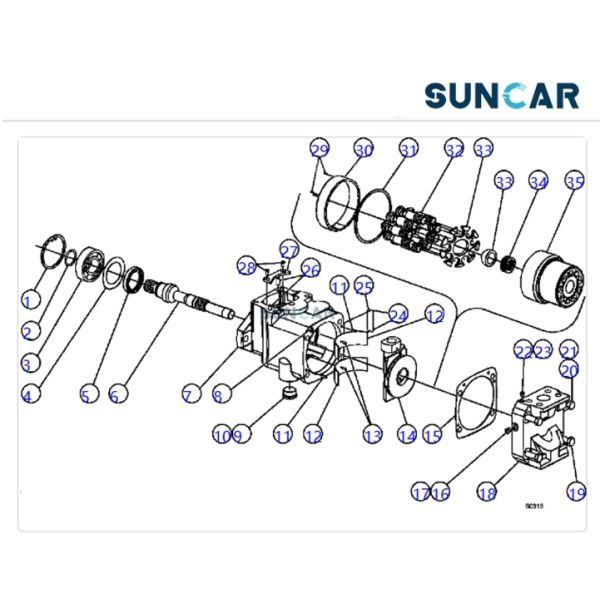

Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | BF3481 | [1] | RING, SNAP (5) Komatsu China | |
| 2 | BF3480 | [1] | RETAINER, DRIVESHAFT (5) Komatsu China | |
| 3 | BF3482 | [1] | BEARING, DRIVESHAFT (5) Komatsu | 0.65 kg. |
| 4 | BF3479 | [1] | SEAL, RETAINER (5) Komatsu | 0.001 kg. |
| 5 | BF3466 | [1] | SEAL, DRIVESHAFT (5)/(7) Komatsu | 0.05 kg. |
| 6 | BF3478 | [1] | DRIVESHAFT (5) Komatsu China | |
| 8 | BF0567 | [1] | O-RING (6)/(8) Komatsu | 0.005 kg. |
| 9 | VE9536 | [1] | PLUG (3) Komatsu China | |
| 10 | VE9541 | [1] | O-RING (3)/(7) Komatsu China | |
| 11 | VE9533 | [2] | PIN, ROLL (2) Komatsu China | |
| 12 | BF3474 | [2] | BEARING, SADDLE (2) Komatsu | 0.12 kg. |
| 13 | BF1662 | [2] | PIN, ROLL (2) Komatsu China | |
| 14 | BF3471 | [1] | SWASHBLOCK (2) Komatsu China | |
| 15 | BF3486 | [1] | GASKET (6)/(7) Komatsu | 0.001 kg. |
| 16 | VE9611 | [1] | O-RING (6)/(7) Komatsu | 0.01 kg. |
| 17 | VE9608 | [1] | PLUG (6) Komatsu China | |
| 18 | BF3483 | [1] | PLATE (6) Komatsu China | |
| 19 | BF3484 | [4] | CAPSCREW (6) Komatsu China | |
| 20 | VE9613 | [1] | O-RING (6)/(7) Komatsu | 0.001 kg. |
| 21 | VE9610 | [1] | PLUG (6) Komatsu China | |
| 22 | BF1371 | [1] | O-RING (6)/(7) Komatsu | 0.01 kg. |
| 23 | BF3485 | [1] | PLUG (6) Komatsu China | |
| 24 | BF0572 | [2] | SCREW, DRIVE (3) Komatsu China | |
| 26 | BF3465 | [2] | PIN, ROLL (3) Komatsu | 0.000 kg. |
| 27 | BF3473 | [1] | PLATE, GUIDE (2) Komatsu China | |
| 28 | BF3476 | [2] | SCREW (2) Komatsu China | |
| 29 | BF3475 | [2] | PIN, ROLL (2) Komatsu China | |
| 30 | BF3472 | [1] | BEARING, CYLINDER (2) Komatsu | 0.95 kg. |
| 31 | BF3477 | [1] | RETAINER, RING (2) Komatsu China | |
| 32 | BF3468 | [1] | PISTON & SHOE ASSEMBLY (4) Komatsu China | |
| 33 | BF3469 | [1] | SHOE RETAINER ASSEMBLY (4) Komatsu China | |
| 34 | BF3470 | [1] | SPRING (4) Komatsu China | |
| 35 | BF3467 | [1] | BARREL, CYLINDER (4) Komatsu China | |
| NS|42. | AK5278 | [-1] | (7) INCLUDED IN AK5278 SOFT GOODS KIT. Komatsu | 0.45 kg. |
Product Show:
Product Description:
Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
There are regularly three cylinders for the excavator, boom cylinder, arm cylinder, bucket cylinder.
Boom cylinder is the one (or the two) near the cabin. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician.
Arm cylinder is the top one, and it's usually be called as top cylinder;
Bucket cylinder is the one that connects and controls the bucket.
