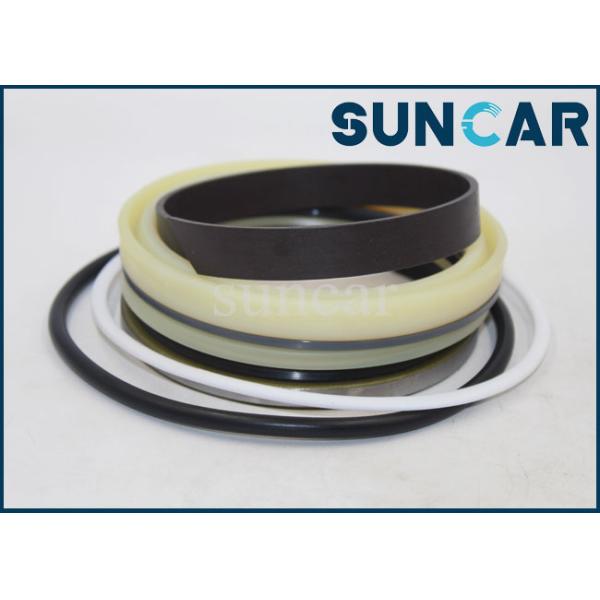

LZ013490 Arm Repair Seal Kits CX300D LC Crawler Excavator Case Cylinder Service Kit
| Product Name | Case Arm Repair Seal Kits |
| Part Number | LZ013490 |
| Model | CASE CX300D LC |
| Material | PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ |
| Place of Origin | China(Mainland) |
| Brand name | SUNCAR |
| Packing | PP bag inside, carton box outside |
| Shipping Mode | By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.) |
| Payment Terms | Western Union, Paypal, T/T, Transfer |
| CertifiC.A.Tion | ISO9001 |
| Warranty | Unavailable |
| Customized | OEM & ODM are welcomed |
| C.A.Tegory Group | Hydraulic oil seal kit |
| Condition | New, genuine new |
| Sample | Available |
| Applicable Industries | Building material shops, machinery repair shops, retail, construction work... |
| Feature | High Sealing performance/ wear resistance |
| AppliC.A.Tion | Arm |
Advantages Of Oil Seal:
1. Oil seal structure is simple and easy to manufacture. Simple oil seal can be molded in one time, even the most compliC.A.Ted oil seal, the manufacturing process is also oil seal not compliC.A.Ted. The metal skeleton oil seal can also form the required oil seal between metal and rubber only by stamping, gluing, inlaying, molding and other processes.
2. Oil seal has light weight and few consumables. Each type of oil seal is a combination of thin-walled metal parts and rubber parts, and its material consumption is very small, so the weight of each oil seal is very light.
3. The installation position of the oil seal is small, the axial size is small, easy to process, and make the machine compact.
4. Oil seal has good sealing performance and long service life. It has certain adaptability to the vibration of the machine and the eccentricity of the main shaft.
5. Oil seal is easy to disassemble and convenient for inspection.
6.The oil seal is cheap.
Related Parts:
| Pos | Part No. | QTY | Parts Name |
| 1 | KBV32291 | [1] | HYDRAULIC CYLINDER |
| 1 | KBV32292 | [1] | HYDRAULIC CYLINDER |
| 2 | LR019540 | [1] | TUBE |
| 3 | LB014450 | [1] | ROD |
| 4 | LU00150 | [1] | CYLINDER END CAP |
| 5 | NSS | [1] | NOT SOLD SEPARAT |
| 6 | NSS | [1] | NOT SOLD SEPARAT |
| 7 | LUU0042 | [12] | BOLT,Hex Skt Hd |
| 8 | LE026030 | [1] | RING |
| 8 | LE027470 | [1] | RING |
| 9 | LJ00897 | [1] | JACK PISTON |
| 10 | LA00738 | [1] | NUT |
| 11 | 156228A1 | [1] | SET SCREW |
| 12 | 155981A1 | [1] | BALL |
| 13 | 162709A1 | [1] | BEARING |
| 14 | 160128A1 | [2] | STOP |
| 15 | 160129A1 | [1] | RING, SNAP |
| 16 | LE00951 | [4] | WIPER SEAL |
| 17 | LD00039 | [1] | CLAMP BRACKET |
| 18 | 160340A1 | [1] | MOUNTING CLIP |
| 19 | 158131A1 | [2] | BOLT |
| 20 | 156227A1 | [2] | WASHER |
| 21 | 155716A1 | [1] | COLLAR |
| 22 | LA00683 | [1] | BOLT,Hex |
| 23 | 892-10012 | [1] | LOCK WASHER,M12 |
| 23 | LA018030 | [1] | WASHER |
| 24 | 153912A1 | [1] | LUBE NIPPLE |
| 25 | LE00746 | [1] | SEAL |
| 26 | LE012550 | [1] | O-RING |
| 27 | LE012320 | [1] | O-RING |
| 28 | LE00738 | [1] | BACK-UP RING |
| 29 | LE019480 | [1] | BACK-UP RING |
| 30 | 154805A1 | [1] | O-RING |
| 30 | LE027480 | [1] | O-RING |
| 31 | 159997A1 | [1] | BACK-UP RING |
| 32 | LE026040 | [1] | SEAL |
| 32 | LE027490 | [1] | SEAL |
| 33 | LE00543 | [1] | SEALING RING |
| 34 | 160000A1 | [2] | BACK-UP RING |
| 35 | LE014690 | [2] | WIPER SEAL |
| 36 | 155309A1 | [2] | RING |
| 37 | 155733A1 | [1] | SHIM |
| 38 | LZ013490 | [1] | SEAL KIT |
| 38 | LZ013720 | [1] | KIT |
Order Process:
1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)
2. Quoting our competitive price for you
3. Place an order after approving the quotation or products
4. We will send Proforma Invoice or sales confirmation
5. You prepay by T/T or L/C or Western Union through bank
6. We will starting to produce after we get your kind payment
7. Packing
8. Shipping the goods to your(our)forwarder
9. Sending all doc for your custom clearance
10. Time to reorder
Product Show:
